ISX2200 ZERO TURM MOWER

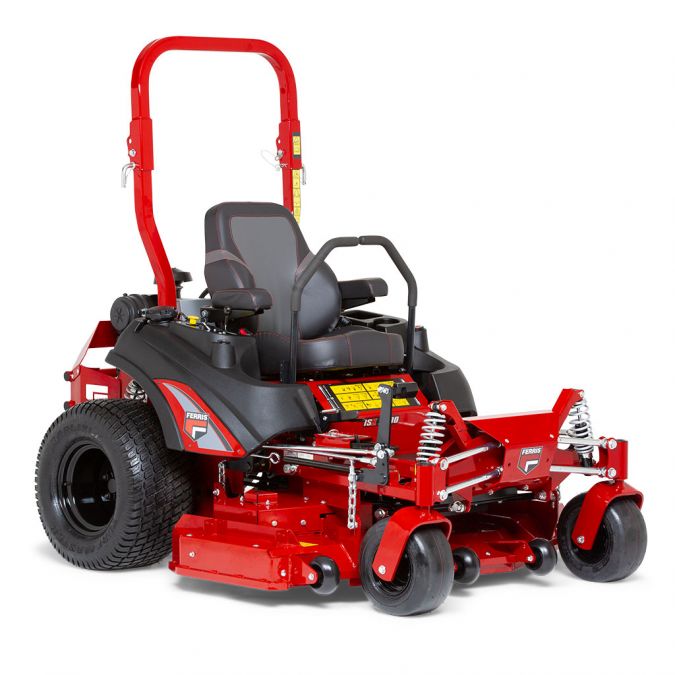

ISX™ 2200 Zero Turn Mower, 61" TRIPLE DECK
Spend one day on the ISX™ 2200 zero-turn mower and you will discover how our patented suspension technology turns slow and bumpy mowing into riding comfort and enhanced productivity. With TRIPLE mowing technology under the mower deck, you’ll enjoy unique versatility that’s all available in one package!
This machine is an aggressive performer for professional users and extremely discerning homeowners. The Vanguard® EFI engine with Oil Guard™ System is fuel efficient and features extended oil change intervals. The 2-belt mower deck drive is designed for longer belt life, reduced maintenance and less downtime and offers a three-year, 300-hour limited warranty.
ISX2200BVE2861SRDCE
Part Number 5902030
Engine Make Vanguard®
Engine Model MOD49, 810 Series
Fuel Type Petrol
Fuel System Electronic Fuel Injection and Oil Guard™ System
Horsepower (HP)** 28.0
Gross kW** 20.9
Cylinders 2 Cylinders V-Twin
Displacement (cc) 810
Cooling Air-cooled
Starting Electric Fuel Capacity (l) 42
Cutting Width (cm / inch) 155 / 61
Deck Configuration TRIPLE iCD™ configurable deck including: rear discharge, side discharge, mulching and mulching blades Height of Cut (cm) 3,8 - 12,7
Deck Construction 3,4 mm fabricated construction, full width double top deck, metal scuff guards, reinforced leading edge, overlap welded corners
Mower Spindles Cast-iron Ø201 mm; Ø25,4 mm shaft
Deck Lift System Foot pedal, spring assisted
PTO Clutch Warner CMS Clutch-Brake (271 Nm)
PTO Engagement Electric
Front Suspension System Forefront™ Independent front wheel suspension system utilizing dual independent control arms and large adjustable coil-over-shocks
Rear Suspension System Swingarm rear wheel suspension system utilizing a pivoting transaxle cradle and large adjustable coil-over-shocks
Reactive Deck Mounting System Front and rear
Drive System Independent Hydro-Gear® ZT-4400™ transaxles
Drive Axles Ø34,93 mm drive shaft with 5-bolt wheel hub
Drive Tyres (inch) 24 x 12,00 - 12 (4 ply) Pneumatic tyre w. turf tread
Caster Tyres (inch) 13 x 6,50 - 6 (4 ply) Pneumatic tyre w. smooth tread
Speed-fwd. (km/h) 0 - 18,0
Speed-rev. (km/h) 0 - 8,0
Overall Length (cm) 213,5 Overall Width (cm) RD: 161,5 - SD: 167,5 / 201,5 (Deflector up / Deflector down)
Dry Weight (kg) 639
Seat Premium mid-back seat with padded armrests and integrated retractable seat belt
Roll-Over Protection Structure Standard, foldable
Instrumentation Fuel level gauge in each tank, hour meter, engine malfunction indicator
Controls / Safety Circuit Independent (left and right) forward & reverse levers, Seat activated engine kill, PTO clutch safety switch, neutral and parking brake safety circuit
Parking Brake Internal wet disc brake in transaxle
Warranty (Balance of Machine) ‡ 4-Years Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Warranty (Coil-Over-Shocks, Suspension Related Components) ‡ 5-Years (60 months) unlimited hours Warranty (Hydro Drive Belt, Tires, Brake Pads, Hoses, Battery, Blades) ‡ 90 Days Warranty (Deck Drive Belt) ‡ 3-years (36 months) or 300 hours, whichever occurs first. (Parts and labor in year one; parts only in years two and three) Warranty (Engine) ‡ 3-Year Manufacturer’s Limited Warranty
| Weight (kgs) | 594KG |
|---|---|
| Manufacturer | Ferris |
| Engine | VANGUARD EFI Petrol engine |
| Engine Size | 28hp |
| Power | Petrol |
| Transmission | Hydrostatic |
| Cutting Width | 61" (155cm) |
| Cutter Type | Rear Discharge |
| Cutting Type | Rotary |
| Mulching | Yes |
| Grass Collection | Optional Extra |
| Usage | Commercial |
