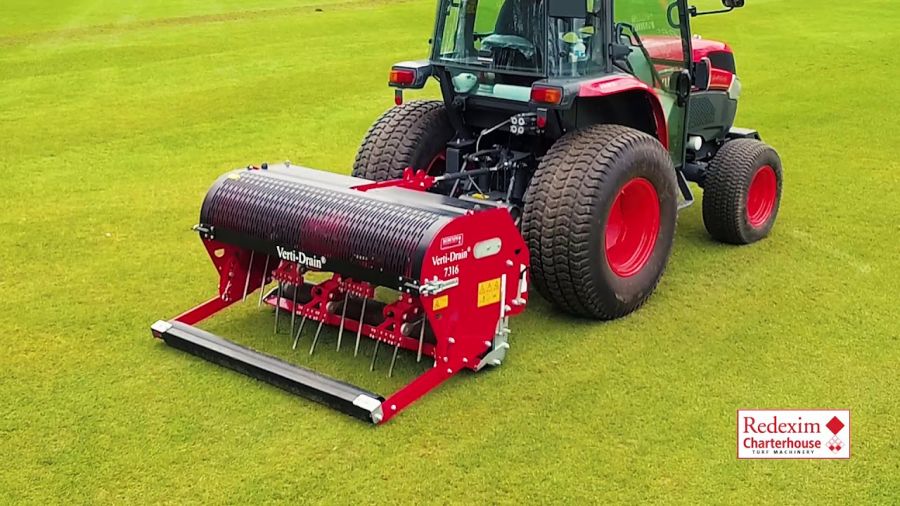

Verti-Drain 7316

Specifications

• SKU 7316
• Working width (m) 1.6
• Working width (inch) 63
• Max. Working depth (mm) 300
• Max. Working depth (inch) 12
• Weight (kg) 670
• Weight (lbs) 1480
• Hole distance with 12 mm tines (mm) 65
• Hole distance with 1 2 x 6 inch tines (inch) 2.5
• Hole distance with 18 mm tines (mm) 130
• Hole distance with 3 4 x 9 inch tines (inch) 5
• Hole spacing distance driving direction (mm) 25 - 195
• Hole spacing distance driving direction (inch) 1 - 7-1/2
• Max diameter solid tine (mm) 18 x 300
• Max diameter solid tine (inch) 3/4 x 12
• Max diameter hollow tine (mm) 25 x 250
• Max diameter hollow tine (inch) 1 x 10
• Min. Tractor HP required 28
• Min. lifting capacity (kg) 825
• Min. lifting capacity (LBS) 1815
• Max. capacity with spacing 65 mm (m² hr) 1360
• Max. capacity with spacing 2-1 2 inch (ft² hr) 12300
• Three-point hitch 3-point CAT 1
• Rpm Max. 500
• Gear case oil 80W90 - 5
• Lubricant EP 2
• Slip clutch setting 500 Nm
• Solid tines 12 x 300mm
• Toolbox with combi tool and manual
• PTO Shaft
