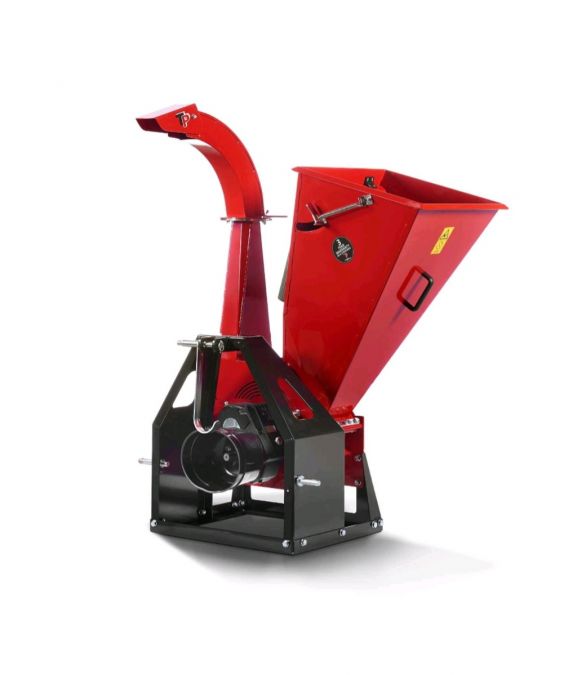

TP100 PTO

Infeed section

Operation: Vertical funnel with safety flap

Infeed opening, height: 150 mm

Infeed opening, width: 275 mm

Funnel opening, height (inside measure): 530 mm

Funnel opening, width (inside measure): 530 mm

Infeed position: Perpendicular to driving direction

Chipping system

Chipping principle: Drum chipper

Chipping angle: 55 degrees

TP OPTICUT: No

TP TWIN DISC: No

Number of blades/knives: 2

Cuts per round: 2

Blade/Knive gauge - minimum: 8 mm

Blade/Knive gauge - maximum: 8 mm

Rotor speed: 1980 rpm Rotor diameter: 410 mm

Rotor weight: 48 kg

Transmission: Gearbox

Anvil/counter knife - horizontal: 1 reversible (Hardox)

Tractor mounting

PTO 1000 rotations per minute: No

PTO 540 rotations per minute: Yes

3-point linkage: Cat. 1 (cat. 0 is an option)

PTO shaft: Included, with free-wheel

PTO rotations per minute: 540 rpm
